COMPACT Boom Barrier with Gas damper

COMPACT Boom Barrier with Gas damper

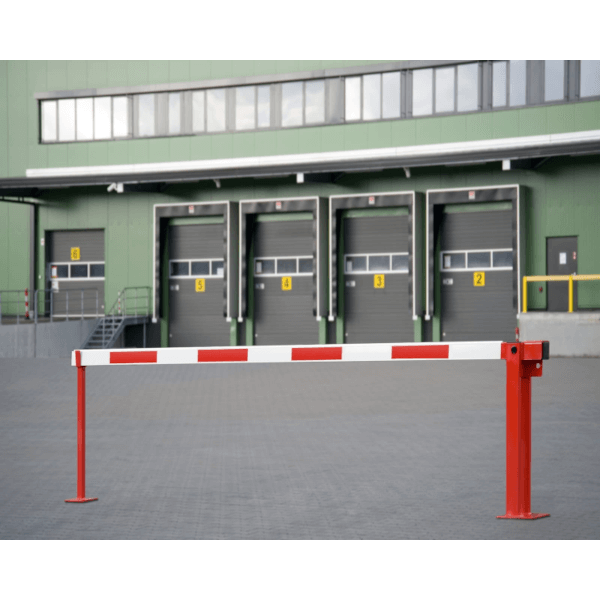

This COMPACT Boom Barrier with Gas damper is a re-design of our System Boom Barrier, which has retained the gas-strut operated action, but has a completely new locking system, boom arm and pivot post. The result is an easily operated barrier with a modern streamlined appearance.

Easily installed.

Unique gas-strut assisted operation.

Strong construction.

‘Anti-sit’ feature boom arm.

Automatically locks in open or closed positions.

Applications:

Entrances and exits to car parks, drives, industrial estates/areas, offices, public buildings etc. Options: Sub-surface fixing, non-automatic locking, triangular key locking, keyed alike locks, customer supplied locks.

Specifications:

Pivot Post

Dims: 220 x 100 1,000mmH

Base plate: 295 x 295 x 10mmD

Material: Steel

Finish: Galvanised & Powder coated

Colour: Red

Barrier Arm

Material: Aluminium

Size: 90 x 60mm

Max boom length: 6,350mm

Colour: White

Stripes: Red reflective

Locking Method: Automatic

Locking Style: Cylinder lock

Options:

Sub-surface fix

Keyed alike locks

Customer supplied profile locks

Triangular key



Options

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 3,350mm - Drive Through Width 2,960mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 3,850mm - Drive Through Width 3,460mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 4,350mm - Drive Through Width 3,960mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 4,850mm - Drive Through Width 4,460mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 5,350mm - Drive Through Width 4,960mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 5,850mm - Drive Through Width 5,460mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Pendulum Support Post - Gas Strut Assisted Lift/Lower - Overall Width 6,350mm - Drive Through Width 5,960mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 3,350mm - Drive Through Width 2,880mm - Cylinder Lock - Surface Fix - Red/Whit

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 3,850mm - Drive Through Width 3,380mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 4,350mm - Drive Through Width 3,880mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 4,850mm - Drive Through Width 4,380mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 5,350mm - Drive Through Width 4,880mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 5,850mm - Drive Through Width 5,380mm - Cylinder Lock - Surface Fix - Red/White

COMPACT System Boom Barrier - Fixed Support Post - Gas Strut Assisted Lift/Lower - Overall Width 6,350mm - Drive Through Width 5,880mm - Cylinder Lock - Surface Fix - Red/White

BULK DISCOUNT AVAILABLE

Any questions, please contact us here

Estimated lead time: 1-2 weeks

PLEASE NOTE: Lead times are an estimate and orders placed today are subject to change depending upon material availability, courier workloads and Staff covid 19 situations. Speedy Street Solutions fully reserve the right to delay delivery due to any direct or indirect impact and without liability to any loss or financial penalty.
