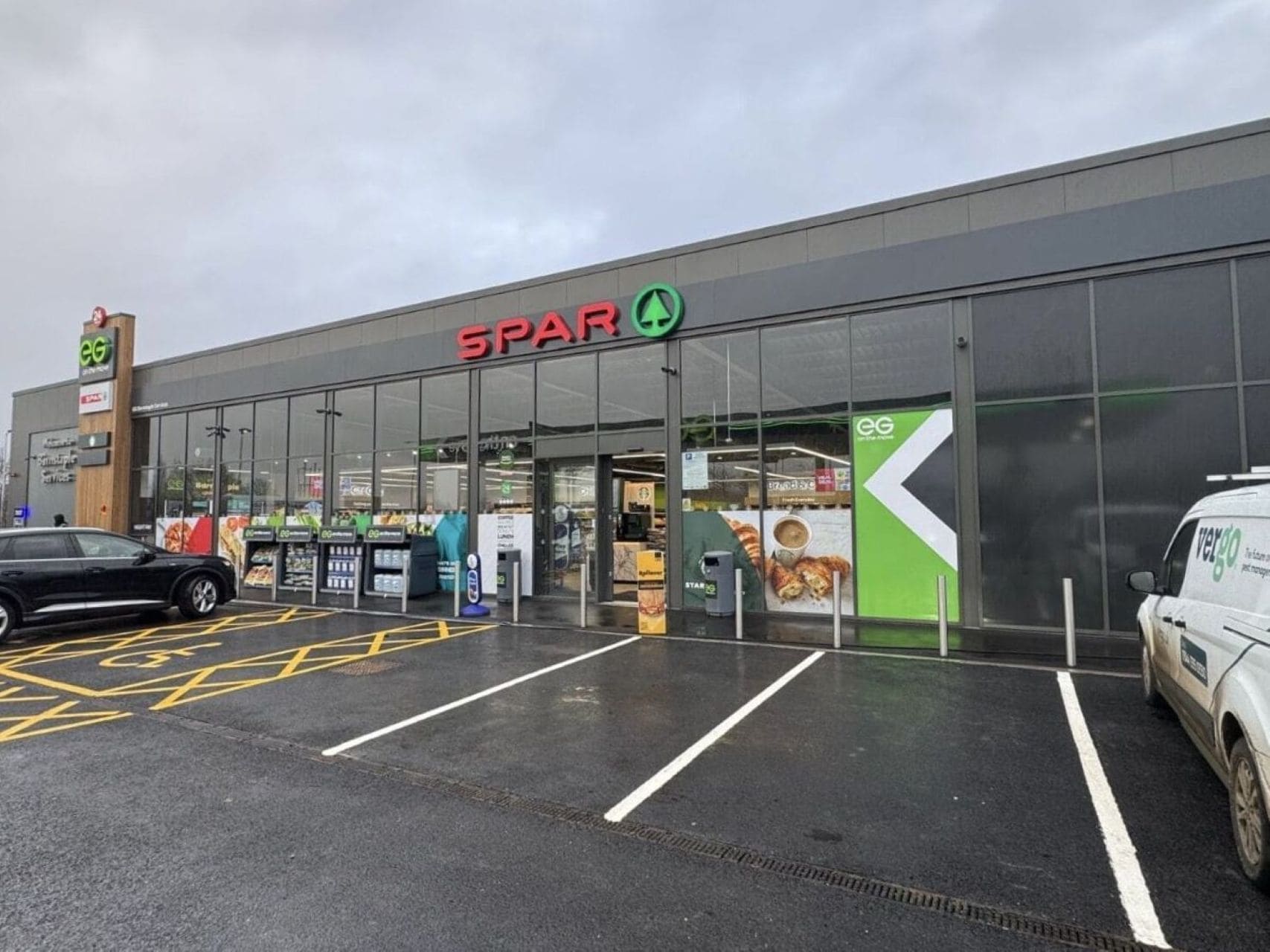

SPAR Barnstaple

Project Overview

The client required the manufacture and supply of:

• 304 grade stainless steel straight bollards – semi dome top
• 304 grade stainless steel cranked bollards – 114mm diameter with reflective banding
• Galvanised hoop barriers (two size variations) – root fixed
• Stainless steel Sheffield cycle stands – root fixed

The aim was to enhance pedestrian safety, protect storefront areas, organise traffic flow, and provide secure cycle parking facilities.

Stainless Steel Straight Bollards – 89mm Semi Dome

Speedy Street Solutions manufactured and supplied:

304 Grade Stainless Steel Bollards

• 89mm diameter
• 1300mm overall height
• Semi-dome top
• Root fixed installation

These bollards provide effective vehicle deterrence while maintaining a clean, modern appearance. The semi-dome top delivers a smooth architectural finish and eliminates sharp edges.

Manufactured from 304 grade stainless steel, the bollards offer excellent corrosion resistance and require minimal maintenance, making them ideal for exposed retail forecourts.

Stainless Steel Cranked Bollards – 114mm with Reflective Banding

For areas requiring enhanced protection, Speedy Street Solutions supplied:

304 Grade Stainless Steel Cranked Bollards

• 114mm diameter
• 1500mm overall length
• 1200mm above ground height
• Semi-dome top
• Root fixed installation
• 2 x 25mm yellow reflective bands

The larger 114mm diameter provides increased strength and impact resistance, ideal for protecting high-risk zones such as storefront glazing and pedestrian access routes.

The twin 25mm yellow reflective bands improve visibility in low-light conditions, increasing safety for both drivers and pedestrians.

Galvanised Hoop Barriers – Root Fixed

To define pedestrian areas and prevent vehicle encroachment, Speedy Street Solutions manufactured and supplied two sizes of galvanised hoop barriers:

Hoop Barrier – 700mm Wide

• 700mm width
• 1200mm height
• Root fixed installation
• Hot dip galvanised finish

Hoop Barrier – 1500mm Wide

• 1500mm width
• 1200mm height
• Root fixed installation
• Hot dip galvanised finish

The galvanised finish ensures long-term corrosion protection, while the root-fixed installation provides maximum structural stability. These barriers help organise pedestrian movement and protect high-traffic areas around the store entrance.

Stainless Steel Sheffield Cycle Stands – Root Fixed

To support sustainable travel, the project included:

304 Grade Stainless Steel Sheffield Cycle Stands

• 750mm width
• 1100mm overall height
• 800mm above ground height
• Root fixed installation

Sheffield cycle stands remain one of the most secure and widely specified forms of bicycle parking in the UK. Their simple, durable design allows cyclists to secure both frame and wheel, making them ideal for busy convenience retail sites.

The stainless steel construction ensures long-term durability and a clean, professional finish.

Root Fixed Installation – Long-Term Strength

All bollards, barriers, and cycle stands were manufactured for root-fixed installation, providing:

• Superior structural stability
• Increased resistance to impact
• Long-term durability
• Reduced risk of movement or vandalism

This method ensures reliable performance in high-traffic retail environments.

Why Stainless Steel & Galvanised Steel Are Ideal for Retail Sites

For convenience stores such as Spar Barnstaple, external infrastructure must deliver:

1. Corrosion Resistance

Both 304 stainless steel and galvanised finishes perform reliably in UK weather conditions.

2. Low Maintenance

Minimal ongoing upkeep required.

3. High Impact Resistance

Designed for areas with frequent vehicle movement.

4. Professional Appearance

Clean finishes that complement modern retail environments.
