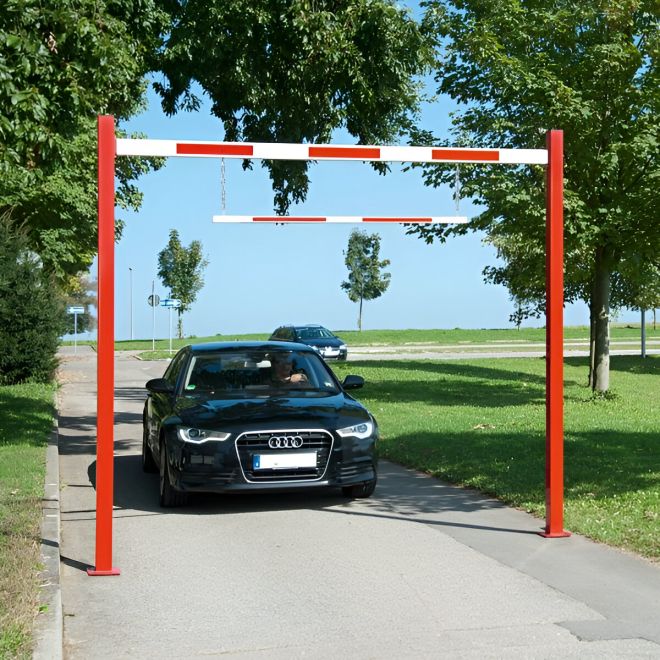

Access Height Restrictor - Fixed
Access Height Restrictor – Fixed is a Strong steel and aluminium construction, ideal for restricting access to vans, commercial vehicles, caravans, motorhomes etc. to car parks, traffic lanes and more. Chain suspended nudge bars can reduce height by a further 400mm.
- Easily installed.
- Restricts access.
- Five integral height levels.
- Strong construction.
Applications:
Surface car parks, retail car parks, multi-story car parks etc.
Materials:
- Support Posts: Steel
- Chain: Steel
- Cross bar: Aluminium
- Nudge bar: Aluminium
Finish:
- Posts: Hot Dip Galvanised and Powder coated Red
- Cross bar: White with Red Reflective panels
- Nudge bar: White with Red Reflective panels
Options:
- Can be supplied for permanent fixing in concrete
- Chain suspended aluminium nudge bar
Note: We recommend that appropriate signage is used with this product.
Contact us:
If you'd like more information, you can call us at the Speedy Street Solutions office in York. You'll get through to one of our friendly team - there are no overseas call centres and you won't be placed in an annoying queue!
- Dimensions
- Posts Size: 100 x 100 x 3mm square
- Posts Base Plate 300 x 300mm. Drilled 6 holes 15mm Dia
- Posts O/all Height: 3,010mm
- Posts Widths: 3,230mm to 10,230mm (Above 6,000mm long Cross bar is supplied in two lengths and joined using steel insert)
- Height Restrictor Adjustable heights: 2,800mm, 2,650mm, 2,500mm, 2,350mm and 2,200mm (Heights can be reduced further by up to 400mm with nudge bars suspended on chains)
- Height Restrictor Cross bar: 105mm x 60mm
- Height Restrictor Optional Nudge bar: 40 x 30 x 2mm supplied with 6mm gauge suspension chain with threaded connectors
