Trolley Guide Rail TGR Protection
Trolley Guide Rail TGR Protection

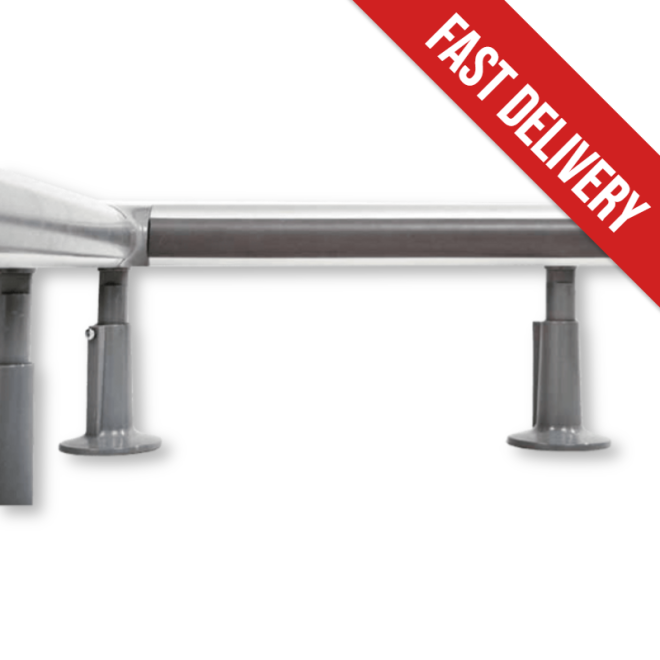

TGR “Trolley Guide Rail” is a tough and economical low-level protection system for internal use.
The TGR system combines a modern styled rail with a smooth flexible rubber insert with adjustable TGR flex feet, which effectively absorb impacts.
The TGR protection rail has many applications for protecting property, equipment, walls and columns from low speed impact from typical front of house hazards, reducing the risk of accidental damage.
The modular range makes for easy planning, installation and maintenance.
Any questions, please contact us here
- Dimensions
- Fixed: Fixed with M12 x 80mm expandable rawlshields & bolts
- Max Feet Distance: Max distance between feet 1500mm
- Max Feet Distance: Max distance from end or corner to first foot 150mm
- Finished Height: 100mm finished height from floor
- Other
- Material: Silver anodised aluminum extrusion with impact absorbent rubber insert
- Assembly: Floor assembled
- Foot Support: Adjustable foot support - height 145-175mm
- Modifications: De-mountable âpottedâ foot option
- Modules: Corner modules create cleaner lines for columns & corners
- Dimensions
- Fixed: Fixed with M12 x 80mm expandable rawlshields & bolts
- Max Feet Distance: Max distance between feet 1500mm
- Max Feet Distance: Max distance from end or corner to first foot 150mm
- Finished Height: 100mm finished height from floor
- Other
- Material: Silver anodised aluminum extrusion with impact absorbent rubber insert
- Assembly: Floor assembled
- Foot Support: Adjustable foot support - height 145-175mm
- Modifications: De-mountable âpottedâ foot option
- Modules: Corner modules create cleaner lines for columns & corners
