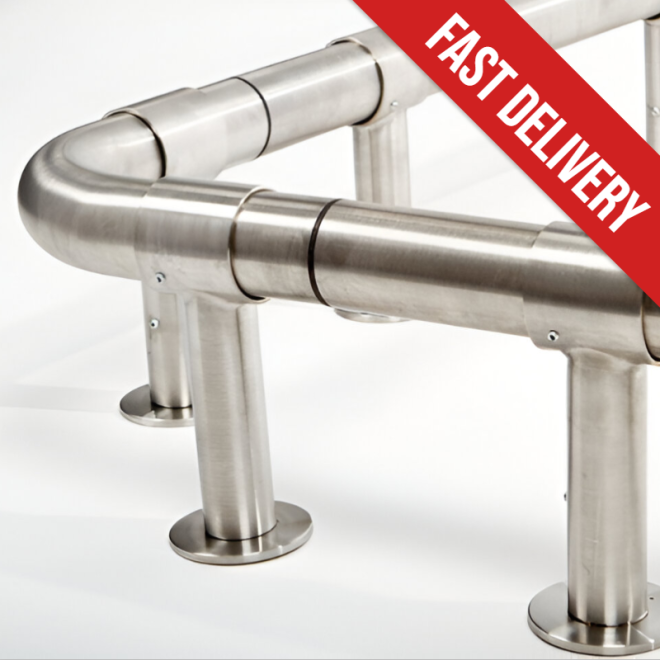

Stainless Steel ISP Protection Rail
ISP Stainless Steel Protection Rail
This low level stainless protection system is suitable for both internal and external use, the low-level modular stainless steel provides durable and robust protection for window lines and brickwork whilst maintaining a modern stylish image. The modular components of the range allows for easy planning and installation.
As well as being available as floor fixed low level protection, it is also possible to fit this stainless steel rail to columns or walls, at any height.
Product Placement:
For installation both internally & externally of entrance lobbies, externally along glazing line and along perimeter walls at customer entrances. To protect against damage from Shopping trolleys.
Performance Criteria:
Must withstand impact from customer trolley’s and deflect impact from structure.
Installation:
Maximum position of 100mm from wall/glazing to back of extrusion
Floor mounted with M10x80mm Expandable rawlshields and bolts
Mark the floor with a chalk line and place the 1st base flange at the start of the run so it runs parallel with the rail
Use the rail to mark the next position of the base flange & continue this process for remainder of run
Floor mounted slide through legs must only be used where a concrete base or slab is available – DO NOT install into block work or tarmac
For potted legs, a hole must be core drilled 150mm wide x 300mm deep. Hole to be backfilled with concrete & potted leg pushed into the concrete before it sets.
Any questions, please contact us here
- Dimensions
- Leg centres: typically 1.5metres
- Height: Top rail is typically 165mm high
- Diameter: Tube diameter 50mm
- Other
- Polish: Stainless Steel Satin Polish 240 grit finish
- End Caps: Stainless Steel End Caps to terminate runs.
- Construction: Fully modular construction. Design construction â Easy to install
- Materials: 51mm x 14swg 304 grade stainless steel
- Support: Surface fixed or potted support foot
- Finished Height: Finished height 180-205mm above finished floor level
