Surface Mounted Flow Plates
SKU
SSS01SMFP01
£183.33

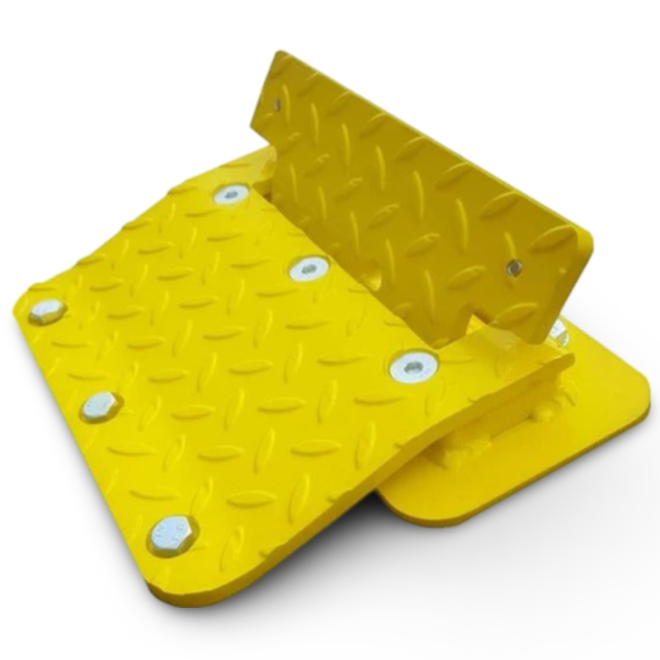

Surface Mounted Flow Plate - Easy to Install!
The Surface Mounted Flow Plate is a traffic management tool designed to enforce one-way traffic flow while ensuring ease of installation. Its durable construction and compact design make it ideal for controlling vehicle movement in environments where surface mounting is preferred. Below are the key features and specifications:
Key Features of the Surface Mounted Flow Plate
- Material: Heavy-duty steel construction, galvanised for durability and corrosion resistance.
- Visibility: Coated in yellow for enhanced visibility and safety.
- Operation: The flap allows vehicles to pass in one direction and automatically returns to an upright position to prevent reverse movement.
- Installation: Surface-mounted design for straightforward installation without extensive groundwork.
Additional Recommendations
- Speed Ramps: For controlled vehicle speeds, it is recommended to use the flow plates in conjunction with speed ramps.
- Signage: Clear warning signs about the presence of One Way Flow Plates are strongly advised.
- Vehicle Clearance: Minimum vehicle clearance of 150mm is required.
- HGV Restriction: These flow plates are not suitable for heavy goods vehicles (HGVs).
Operational Overview
The Surface Mounted Flow Plate operates efficiently, with the flap moving smoothly to allow forward passage while preventing reverse movement. This ensures reliable one-way traffic control with minimal noise or disturbance.
Surface Mounted Flow Plate: Typical Applications
The compact and visible design of these plates makes them suitable for use in parking lots, private roads, and areas requiring surface-mounted solutions for directional traffic control. For a standard lane width of 3 metres, a group of these plates should be installed to ensure complete coverage.
Questions About Flow Plates?
If you've got any further questions, please call us DIRECT on 01904 786861. Your call will be answered by one of our small, friendly team at our HQ in York, North Yorkshire.
Product Specification
- Other
- Dimensions (Flap Closed): 360mm (width) x 250mm (length) x 45mm (height).
- Dimensions (Flap Open): 360mm (width) x 250mm (length) x 110mm (height).
- Material Thickness: 10mm galvanised steel plate.
- Weight: 7kg total weight.
Bespoke Products & Bulk Discounts Available On Request
