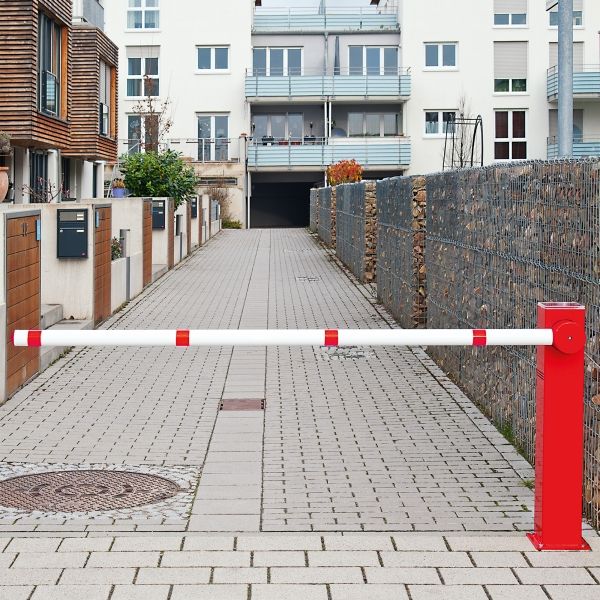

COMPACT Electronic Boom Barrier, Red and White Boom Barrier
The COMPACT Electronic Boom Barrier provides a reliable and effective barrier for small to medium sized entrance ways.The barrier is powered by a combination of internal battery and solar power. Installation is extremely simple as the unit comes preassembled, just bolt down in selected position and fit boom arm to pivot post assembly. No outside electrical supply required.
- Highly visible boom arm with red reflective strips.
- All aluminium construction.
- Solar powered operation.
- Manual override in case of emergency.
Applications:
Private estate entrances, car parks, building entrances etc.
Operational Cycles:
- Battery: Up to 2,500 cycles/day (approx.)
- Solar module: Additional 50 cycles / day (approx.)
- Remote control: 12m range
Any questions, please contact us here
- Dimensions
- Pivot Post Material: Aluminium
- Pivot Post Dims: 150 x 150 x 1,000mmH
- Pivot Post Base plate: 200 x 200 x 5mm Gauge
- Boom Arm Dims: 60mm Dia.
- Boom Arm Max. length: 2,500mm
- Boom Arm Max drive thru: 2,650mm
- Dimensions
- Pivot Post Material: Aluminium
- Pivot Post Dims: 150 x 150 x 1,000mmH
- Pivot Post Base plate: 200 x 200 x 5mm Gauge
- Boom Arm Dims: 60mm Dia.
- Boom Arm Max. length: 2,500mm
- Boom Arm Max drive thru: 2,650mm
