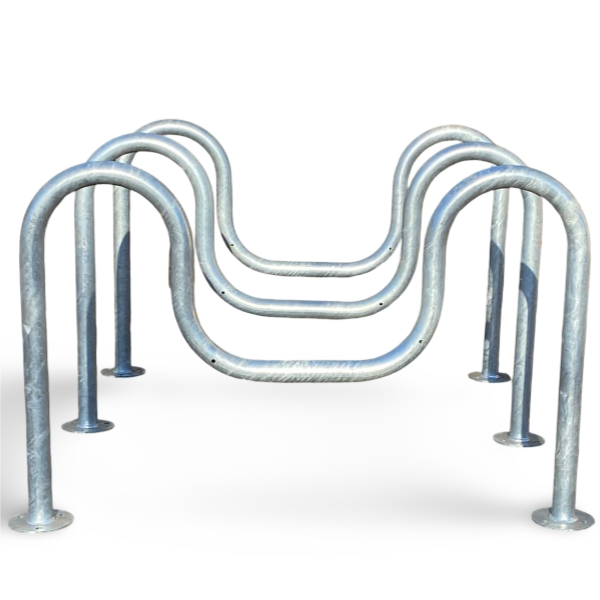

M Cycle Stand
The 'M' Cycle Stand is a favored choice within London's transportation network due to its advanced security features and versatile design.
This comprehensive specification highlights the 'M' Cycle Stand's robust construction, security features, and customization options, making it an ideal choice for cyclists within London's transportation network.
- Dimensions
- Dimensions: 750mm above ground, 1160mm overall length, 3mm wall thickness for mild steel, 2mm for stainless steel, 300mm below ground for ragged version
- Other
- Capacity: Suitable for one or two bikes (one on each side).
- Installation Options: Available ragged for casting in or flanged for bolting down.
- Material: Manufactured from 48mm diameter galvanized mild steel tube.
- Color Options: Color-coated finishes are available; RAL/BS numbers must be specified at the time of order.
- Flanged Version Installation: Requires 6no 12mm bolts for installation.
- Stainless Steel Grade: Standard grade is 304, with the option to order grade 316.
- Enhanced Security: Offers varying locking heights for heightened security compared to traditional stands.
- Frame and Wheel Security: Allows cyclists to secure both the frame and wheel of their bicycle using their own security lock.
- Dual Capacity: Each stand can accommodate up to two bicycles.
- Customization Options: Available in flanged, color-coated, and stainless steel versions upon request.
- Reflective Tape: Supplied with contrasting reflective tape (orange for galvanized stands, black for stainless steel) for increased visibility.
- Optional Tapping Rail: Can be equipped with a tapping rail sitting 100mm above ground level.
