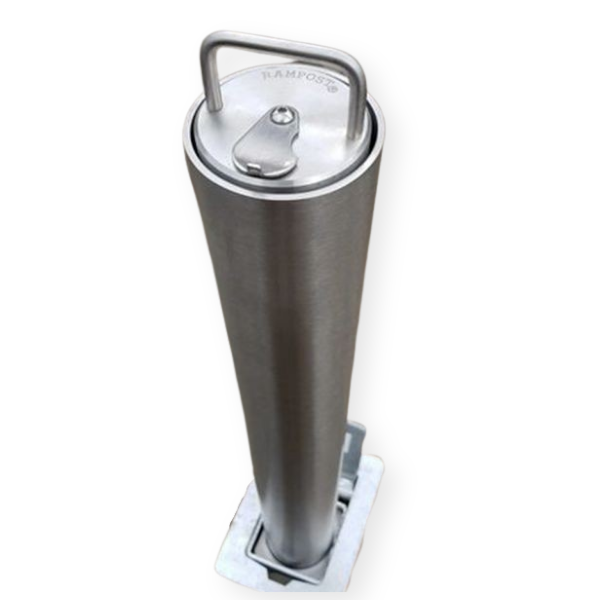

Lift Assisted Bollards
This lift assisted telescopic post has a robust design with an internal lift assisted mechanism. It is fully retractable when not in use. This post is suitable for most commercial premises requiring improved security but where lifting weight is a concern.
The internal gas actuated ram mechanism reduces the lifting weight by approximately 70% compared to the standard manual telescopic bollard.
- Dimensions
- Diameter: 114mm
- Heights (above ground): 670mm, 850mm
- Bollard Wall Thicknesses: Steel: 5mm, Stainless steel: 3mm with 3mm heavy duty internal steel liner
- Other
- Materials: Sleeve: 304 grade stainless steel, 316 grade stainless steel, mild steel, Outer Casing: 5mm mild steel
- Weight: 47kg, 55kg
- Standard Finishes: 304 Brushed satin stainless steel, galvanised, powder coated
- Ground Clearance: Flush 6mm gauge galvanised lid
- Lock: 10 pin push button anti-drill high security lock
- Keys: 2 supplied, more available for a small charge
- Key Alike: Available if ordering more than one bollard
Full Installation Available: please contact us here for a price.
Data sheet for 114 x 670 galv+powder coated
Data sheet for 114 x 670 stainless steel
Data sheet for 114 x 650 stainless steel
