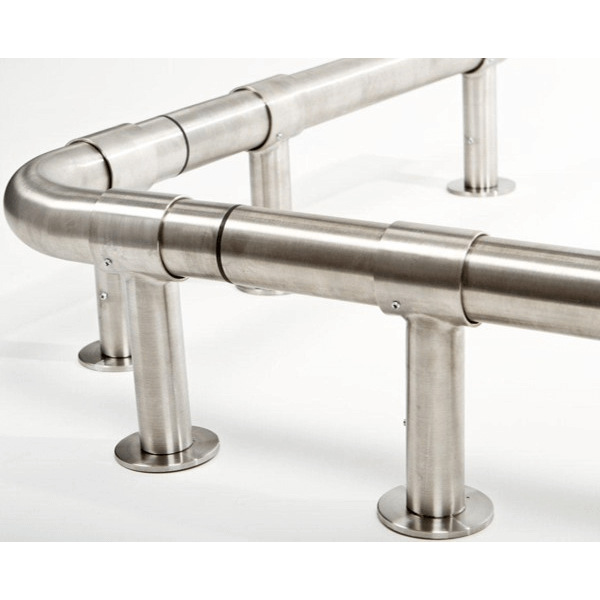

ISP Stainless Steel Protection Rail

In stock
SKU
ISP Stainless Steel Protection Rail
£66.00 £55.00

This low level stainless protection system is suitable for both internal and external use, the low-level modular stainless steel provides durable and robust protection for window lines and brickwork whilst maintaining a modern stylish image.

ISP Stainless Steel Protection Rail



This low level stainless protection system is suitable for both internal and external use, the low-level modular stainless steel provides durable and robust protection for window lines and brickwork whilst maintaining a modern stylish image. The modular components of the range allows for easy planning and installation.

As well as being available as floor fixed low level protection, it is also possible to fit this stainless steel rail to columns or walls, at any height.



Features:

Fully modular construction

Design construction – Easy to install

51mm x 14swg 304 grade stainless steel

Surface fixed or potted support foot

Finished height 180-205mm above finished floor level



Product Placement:

For installation both internally & externally of entrance lobbies, externally along glazing line and along perimeter walls at customer entrances. To protect against damage from Shopping trolleys.



Performance Criteria:

Must withstand impact from customer trolley’s and deflect impact from structure.



Product Specification:

Grade 304 Stainless Steel

Stainless steel Satin Polish 240 grit finish

Tube diameter 50mm

Plastic End Caps to terminate runs.



Installation:

Maximum position of 100mm from wall/glazing to back of extrusion

Floor mounted with M10x80mm Expandable rawlshields and bolts

Leg centres are typically 1.5metres

Height of top rail is typically 165mm high

Mark the floor with a chalk line and place the 1st base flange at the start of the run so it runs parallel with the rail

Use the rail to mark the next position of the base flange & continue this process for remainder of run

Floor mounted slide through legs must only be used where a concrete base or slab is available – DO NOT install into block work or tarmac

For potted legs, a hole must be core drilled 150mm wide x 300mm deep. Hole to be backfilled with concrete & potted leg pushed into the concrete before it sets.

BULK DISCOUNT AVAILABLE

Please note under the current COVID 19 situation orders placed today may take up to 3-5 working days. This is subject to change depending upon courier workloads and availability - please contact us for current lead times.
